Stainless Steel 316 Pipes & Tubes Manufacturer

Stainless Steel 316 Pipe, Stainless Steel 1.4401 Seamless Pipes, Stainless Steel 316 Seamless Pipe, 316 Stainless Steel Pipes, UNS S31600 Pipes, SS 316L Seamless Pipe, Stainless Steel 316 Seamless Pipes Manufacturer in Mumbai India.

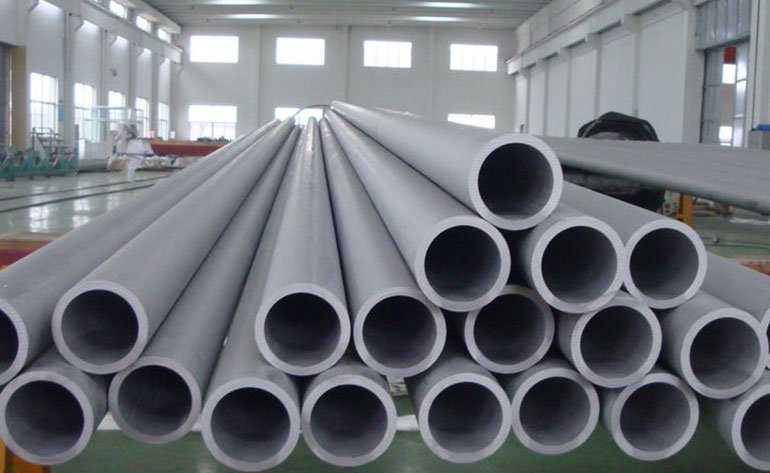

Stainless Steel 316/ 316L/ 316Ti Pipes / Tubes

20%
VISION

50%
MISSION

98%
QUALITY


Stainless Steel 316 Seamlesss Pipes, SS 316 Pipe, ASTM A312 TP 316 Welded Pipe, Stainless Steel 316 Pipe, SS 316L Welded Pipe, 316Ti SS Pipes, 316 Stainless Steel Pipe ,316Ti Stainless Steel Seamless Pipes,Stainless Steel 1.4436 Pipes & Tubes Supplier in Mumbai India.

Stanley Alloys is the most trusted and highly approved steel manufacturing industry. We produce high-quality products using superior quality raw material. This material is highly tested and certified.

Stanley Alloys is very popular in the industry of the production of stainless Steel 316 Seamless Pipes. We are currently serving many other popular grades with the finest quality. We serve every order with complete safety measures as well as very rapid delivery schedules. Stainless Steel 316 and 316l and 316ti Pipes and Tubes are in significant demand due to the rise in industries and their respective equipment.The excellent performance of stainless steel 316 pipes makes it an ideal application for extreme weather conditions and heat pressure. The tensile strength of these pipes is 515 MPa, whereas the yield strength is 205 MPa

Stainless Steel 316, as well as 316L and 316ti Pipes Tubes, are used in many industries for the manufacturing of their respective instruments such as medical implants, Oil and gas, chloride environments, knee replacements, Food preparation equipment, Chemical processing, total hip, Marine applications, Fasteners, Commercial, Pharmaceuticals, Architectural applications, screws, orthopaedic implants and many more.

316 Stainless Steel Seamless Pipes consist of excellent mechanical properties such as its Hardness in Rockwell B (HR B) max is 95 max. Brinell (HB) max is 217 max. These pipes and tubes yield a strength of 0.2%, the proof is 170 MPa, whereas its tensile strength is 485 MPa min. Its elongation (% in 50 mm) is 40 min.

Specification of Stainless Steel 316 Pipes & Tubes

Pipe Specifications: ASTM A312, A358 / ASME SA312, SA358

Tube Specifications: ASTM A213, A269, A249, A511, A554 / ASME SA213, SA269, SA249, SA511, SA554

Dimensions: ANSI B36.19, ANSI B36.10

Pipe Outside Diameter: 6.00 mm OD up to 914.4 mm OD, Sizes up to 24" NB available Ex-stock, OD Size Steel Tubes available Ex-stock

Tube Outside Diameter: 1/8" OD TO 2"OD 3MM OD TO 38 MM OD

Thickness Range: 1MM TO 3 MM 0.028 TO 0.156 IN, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS

Type: Seamless / ERW / Welded / Capillary Tubes

Form: Round Tube, Square Tube, Rectangular Tube

Length: Single Random, Double Random & Required Length

End: Plain End, Beveled End, Treaded

End Protection: Plastic Caps

Finish: Annealed and Pickled, Polished, Bright Annealed, Cold Drawn

External Coating: 3LPE / 3LPP/ FBE/ DFBE/ PP


Similarly, UNS S31600 Pipes is one of the most rigid grades of this series. It has high resistance with extraordinary thermal conductivity. It has high strength and flexibility. This grade lasts much longer than other stainless steel grades. Stainless steel 316L is commonly being used in petrochemical industries, chemical industries, aerospace industries, etc. This grade is generally known as a commercial grade because of its magnetic and thermal properties. It has high power, tensile, and yield strength, which justifies its application in all these high pressured industries. The estimated suitable working temperature for these stainless steel 316L seamless and welded pipes is from 1010°C-1120°C.

Stainless steel 316Ti Seamless Pipes is also a high-quality grade generally used in pharmaceuticals, Energy industries, Refining industries, and food processing industries. This grade provides high resistance from all the chemical reactions.

Available Types of Stainless Steel 316 Pipes & Tubes

SS 316/ 316L/ 316Ti Seamless Pipes

Seamless Pipes

Seamless Pipes

ASTM A312 SS 316 Seamless Pipes
316L Stainless Steel Seamless Pipe
ANSI B36.19 SS 316Ti Seamless Pipes
UNS S31600 SS Seamless Pipes Supplier
DIN 1.4401 Seamless Pipes Exporter.
SS 316/ 316L/ 316Ti Welded Pipes

Welded Pipes

Welded Pipes

ASTM A312 SS 316 Welded Pipes
316L Stainless Steel Welded Pipe
ANSI B36.10 SS 316Ti Welded Piping
UNS S31603 Welded Pipes Supplier
Werkstoff Nr. 1.4404 Welded Pipes Exporter.
SS 316/ 316L/ 316Ti Seamless Tubes

Seamless Tubes

Seamless Tubes

ASTM A312 SS 316 Seamless Tubes
316L Stainless Steel Seamless Tubes
ASME SA312 SS 316Ti Seamless Tubes
UNS S31635 Seamless Tubes Supplier
Werkstoff Nr. 1.4571 Seamless Tubes Exporter.
SS 316/ 316L/ 316Ti Welded Tubes

Welded Tubes

Welded Tubes

ASTM A312 SS 316 Welded Tubes
316L Stainless Steel Welded Tubing
ASME SA312 SS 316Ti Welded Tubes
UNS S31600 SS Welded Tubes Supplier
SS 1.4401 Welded Tubes Exporter.
SS 316/ 316L/ 316Ti ERW Pipes/Tubes

ERW Pipes/Tubes

ERW Pipes/Tubes

ASTM A312 SS 316 ERW Pipes
SS 316L ERW Round Tubes
Stainless Steel 316Ti ERW Pipes
UNS S31603 ERW Pipes Supplier
Werkstoff Nr. 1.4404 ERW Tubes Exporter.
SS 316/ 316L/ 316Ti EFW Pipes/Tubes

EFW Pipes

EFW Pipes

ASTM A358 SS 316 EFW Pipes
ANSI B36.19 SS 316L EFW Pipe
Stainless Steel 316Ti EFW Pipes
UNS S31600 EFW Pipes Supplier
DIN 1.4401 EFW Pipes Exporter.

Equivalent Grades of Stainless Steel 316 Pipes & Tubes

Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
316 S31600 316S31 58H, 58J 1.4401 X5CrNiMo17-12-2 2347 SUS 316
316L S31603 316S11 - 1.4404 X2CrNiMo17-12-2 2348 SUS 316L

STANDARD WERKSTOFF NR. UNS JIS AFNOR BS GOST EN
SS 316TI 1.4571 S31635 SUS 316Ti Z6CNDT17‐12 320S31 08Ch17N13M2T X6CrNiMoTi17-12-2

Chemical Composition of Stainless Steel 316 Pipes & Tubes

Grade C Mn Si P S Cr Mo Ni N
316/ 316L/ 316Ti min.
max.		 -
0.08		 -
2.0		 -
0.75		 -
0.045		 -
0.03		 16.0
18.0		 2.00
3.00 		10.0
14.0		 -
0.10

Stainless Steel 316 Pipes & Tubes Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
316/ 316L/ 316Ti 515 205 40 95 217

Size Chart Of Stainless Steel 316 Pipes & Tubes

316 Stainless Steel Pipes OD
mm		 Pipe WT
mm		 in. Sch Kg/m
13.72 1.65 1/4 10S 0.50
13.72 2.24 1/4 40S 0.64
13.72 3.02 1/4 80S 0.81
17.15 1.65 3/8 10S 0.64
17.15 2.31 3/8 40S 0.86
17.15 3.20 3/8 80S 1.12
21.34 2.11 1/2 10S 1.02
21.34 2.77 1/2 40S 1.29
21.34 3.73 1/2 80S 1.65
26.67 2.11 3/4 10S 1.30
26.67 2.87 3/4 40S 1.71
26.67 3.91 3/4 80S 2.23
33.40 2.77 1 10S 2.13
33.40 3.38 1 40S 2.54
33.40 4.55 1 80S 3.29
33.40 6.352) 1 160 4.30
42.16 2.77 1¼ 10S 2.73
42.16 3.56 1¼ 40S 3.44
42.16 4.85 1¼ 80S 4.53
42.16 6.352) 1¼ 160 5.69
48.26 2.77 1½ 10S 3.16
48.26 3.68 1½ 40S 4.11
48.26 5.08 1½ 80S 5.49
60.33 2.77 2 10S 3.99
60.33 3.91 2 40S 5.52
60.33 5.54 2 80S 7.60
60.33 8.742) 2 160 11.29
73.03 3.05 2½ 10S 5.35
73.03 5.16 2½ 40S 8.77
73.03 7.01 2½ 80S 11.59
88.90 3.05 3 10S 6.56
88.90 5.49 3 40S 11.47
88.90 7.62 3 80S 15.51
88.90 11.132) 3 160 21.67
101.60 3.05 3½ 10S 7.53
101.60 5.74 3½ 40S 13.78
101.60 8.08 3½ 80S 18.92
114.30 3.05 4 10S 8.50
114.30 6.02 4 40S 16.32
114.30 8.56 4 80S 22.67
114.30 13.492) 4 160 34.05
141.30 6.55 5 40S 22.10
141.30 9.53 5 80S 31.44
141.30 15.882) 5 160 49.87
168.28 3.4 6 10S 14.04
168.28 7.11 6 40S 28.69
168.28 10.97 6 80S 43.21
168.28 14.27 6 120 54.75
168.28 18.262) 6 160 68.59
219.08 8.18 8 40S 43.20
219.08 12.7 8 80S 65.63
219.08 18.23 8 120 91.30
219.08 23.012) 8 160 112.97

Weight Chart Of Stainless Steel 316 Seamless Pipes & Tubes

NPS Outside Diameter Wall Thickness   Weight Weight
in mm in mm Sched kg/Mtr Lb/ft
1/2″ 0.840 21 0.109 2.769 40 STD 1.268 0.851
      0.147 3.734 80 STD 1.621 1.088
3/4″ 1.050 27 0.113 2.870 40 STD 1.684 1.131
      0.154 3.912 80 STD 2.195 1.474
1″ 1.315 33 0.133 3.378 40 STD 2.501 1.679
      0.179 4.547 80 STD 3.325 2.172
1 1/4″ 1.660 42 0.140 3.556 40 STD 3.385 2.273
      0.191 4.851 80 STD 4.464 2.997
1 1/2″ 1.900 48 0.145 3.683 40 STD 4.048 2.718
      0.200 5.080 80 STD 5.409 3.361
2″ 2.375 60 0.154 3.912 40 STD 5.441 3.653
      0.218 5.537 80 STD 7.480 5.022
2 1/2″ 2.875 73 0.203 5.516 40 STD 8.629 5.793
      0.276 7.010 80 STD 11.411 7.661
3″ 3.500 89 0.216 5.486 40 STD 11.284 7.576
      0.300 7.620 80 STD 15.272 10.253
4″ 4.500 114 0.237 6.020   16.073 10.790
      0.337 8.560   22.318 14.983
6″ 6.625 168 0.188 4.775   19.252 12.924
      0.203 5.516   20.739 13.923
      0.219 5.563   22.318 14.983
      0.250 6.350   25.354 17.021
      0.280 7.112 40 STD 58.263 18.974
      0.312 7.925   31.334 21.036
      0.375 9.525   37.285 25.031
      0.432 10.973 80 XHY 42.561 28.573
      0.500 12.700   48.719 32.708
8″ 8.625 219 0.188 4.775   25.233 16.940
      0.203 5.156   27.198 18.259
      0.219 5.563   29.286 19.661
      0.250 6.350 20 33.308 22.361
      0.277 7.036 30 36.786 24.696
      0.322 8.179 40 42.352 28.554
      0.375 9.525   49.216 33.041
      0.406 10.312 60 53.085 35.638
      0.500 12.700 80 XHY 64.627 43.388
10″ 10.750 273 0.188 4.775   31.588 21.207
      0.219 5.563   36.689 24.631
      0.250 6.350 20 41.759 28.035
      0.307 7.798 30 51.002 34.240
      0.344 8.738   56.946 38.231
      0.365 9.271 40 STD 63.301 40.483
      0.438 11.125   71.852 48.238
      0.500 12.700 60 XHY 81.530 54.735
      0.594 15.088 80 95.969 64.429
12″ 12.750 324 0.188 4.775   37.570 25.222
      0.219 5.563   43.657 29.309
      0.250 6.350   49.713 33.375
      0.281 7.137   55.739 37.420
      0.312 7.925   61.735 41.445
      0.375 9.525   73.824 49.562
      0.406 10.312   79.727 53.525
      0.500 12.700   97.438 65.415
      0.562 14.275   108.966 73.154
14″ 14.000 356 0.188 4.775   41.308 27.732
      0.219 5.563   48.012 32.233
      0.250 6.350 20 54.685 36.713
      0.281 7.137   61.327 41.172
      0.312 7.925   67.939 45.611
      0.375 9.525 STD 81.281 54.568
      0.438 11.125 40 94.498 63.441
      0.500 12.700 XHY 107.381 72.090
      0.625 15.875   132.983 89.278
16” 16.000 406 0.188 4.775   47.290 21.748
      0.219 5.563   54.980 36.910
      0.250 6.350 10 62.639 42.053
      0.281 7.137   70.268 47.174
      0.312 7.925 20 77.866 52.275
      0.344 8.738   85.677 57.519
      0.375 9.525

30

STD

 93.213 62.578
      0.438 11.125   108.433 72.797
      0.500 12.700

40

XHY

 123.289 82.770
18″ 18.000 457 0.219 5.563   61.948 41.588
      0.250 6.350   70.593 47.393
      0.281 7.137   79.208 53.176
      0.312 7.925 20 87.792 58.939
      0.375 9.525 STD 105.144 70.588
      0.438 11.125 30 122.369 82.152
      0.500 12.700 XHY 139.198 93.450
      0.562 14.275 40 155.904 104.666
      0.625 15.875   172.754 115.978
20″ 20.000 508 0.250 6.350   78.547 52.733
      0.282 7.163   88.458 59.386
      0.312 7.925   97.719 65.604
      0.375 9.525 20 STD 117.075 78.598
      0.438 11.125   136.305 91.508
      0.500 12.700 30 XHY 155.106 104.130
      0.594 15.088 40 183.378 123.110
      0.625 15.875   192.640 129.328
      0.688 17.475   211.368 141.901
24″ 24.000 610 0.250 6.350   94.456 63.413
      0.281 7.137   106.029 71.183
      0.312 7.925   117.573 18.932
      0.375 9.525 20 STD 140.938 64.618
      0.438 11.125   164.176 110.219
      0.500 12.700 XHY 186.923 125.490
      0.625 15.875   232.410 156.028
      0.688 17.475 40 255.148 171.293
      0.750 19.050   277.401 186.233
30″ 30.000 762 0.250 6.350   118.318 79.433
      0.281 7.137   132.851 89.189
      0.312 7.925 10 147.353 98.925
      0.375 9.525 STD 176.731 118.648
      0.438 11.125   205.983 138.286
      0.500 12.700 20 XHY 234.647 157.530
      0.625 15.875 30 292.066 196.078
      0.688 17.475   320.817 215.380
      0.750 19.050   348.988 234.293
36″ 36.000 914 0.250 6.350   142.180 95.453
      0.281 7.137   159.672 107.196
      0.312 7.925 10 177.133 118.918
      0.375 9.525 STD 215.525 142.678
      0.438 11.125   247.790 166.353
      0.500 12.700 20 XHY 282.372 198.570
      0.625 15.875   351.723 236.128


0.688

 17.475   386.487 259.467


0.750

 19.050   420.576 282.353
42″ 42.000 1067 0.312 7.925   206.914 138.911
      0.375 9.525 STD 248.319 166.708
      0.500 12.700 XHY 33.097 221.610
      0.750 19.050   492.163 330.413
48″ 48.000 1219 0.375 9.525 STD 284.112 190.738
      0.438 11.125   331.404 222.487
      0.500 12.700 XHY 377.822 253.650
      0.750 19.050   563.750 378.473
      0.875 22.225   655.969 440.383

Stainless Steel 316/ 316L/ 316Ti Pipes & Tubes Make

Manufacturer of Dalmine Stainless Steel 316/ 316L/ 316Ti Pipes
Tubacex Make Stainless Steel TP316/ 316L/ 316Ti Tubes Exporter
Nippon Steel & Sumitomo Metal Make Stainless Steel 316/ 316L/ 316Ti Seamless Pipes
Sumitomo Make Stainless Steel 316/ 316L/ 316Ti Welded Pipes Supplier
Arcelor Mittal Make SS 316/ 316L/ 316Ti Plain End Pipes
JFE Steel Corporation Make SS 316/ 316L/ 316Ti Seamless Tubes Dealer
Ratnamani Make Stainless Steel 316/ 316L/ 316Ti Hollow Pipes
Outokumpu Make Stainless Steel 316/ 316L/ 316Ti Pipes Exporter
Welspun Make SS 316/ 316L/ 316Ti Large Diameter Pipes/Tubes
V & M Make SS 316/ 316L/ 316Ti Electric Fusion Welding pipe
MSL Make SS 316/ 316L/ 316Ti Seamless pipe/tube Supplier
Jindal Saw Ltd Make Stainless Steel 316/ 316L/ 316Ti Pipes/Tubes

People also search about SS 316/ 316L/ 316Ti Pipes & Tubes

DIN 1.4436 Pipes retailer in Philippines, Stainless Steel 316 Welded Pipes retailer in Chennai, Stainless Steel 316 Welded Pipes trader in Kuwait, Stainless Steel 316 Seamless Pipes trader in Philippines, UNS S31600 Seamless Pipes trader in Qatar, UNS S31600 Pipes supplier in Philippines, ASME SA312 Welded Pipes retailer in Indonesia, DIN 1.4436 Welded Pipes stockiest in Oman, UNS S31600 Welded Pipes trader in Coimbatore, Stainless Steel 316 Welded Pipes supplier in Vietnam, ASTM A312 TP 316 Pipes retailer in Oman, ASTM A312 TP 316 Pipes distributor in Oman, DIN 1.4436 Seamless Pipes dealer in Pune, 316 Stainless Steel Seamless Pipes trader in Mumbai, Grade 316 Welded Pipes dealer in Chennai, 316 Stainless Steel Welded Pipes distributor in Mumbai, Grade 316 Seamless Pipes stockiest in Malaysia, ASTM A312 TP 316L Pipes manufacturer in Indonesia, UNS S31600 Seamless Pipes retailer in Kuwait, ASME SA312 Seamless Pipes retailer in Indonesia, ASTM A312 TP 316Ti Pipes dealer in Indonesia, Stainless Steel 316Ti Seamless Pipes dealer in Coimbatore, Grade 316 Pipes supplier in Malaysia, Stainless Steel 316L Welded Pipes manufacturer in sharjah, ASME SA312 Welded Pipes distributor in Singapore, ASTM A312 TP 316 Welded Pipes retailer in Indonesia, 316 Stainless Steel Pipes dealer in Kolkata, UNS S31600 Welded Pipes supplier in Malaysia, ASTM A312 TP 316 Seamless Pipes stockiest in India, UNS S31600 Seamless Pipes dealer in India, Stainless Steel 316 Welded Pipes distributor in Kuwait, Grade 316 Pipes retailer in Malaysia, Stainless Steel 316 Welded Pipes manufacturer in Philippines, ASTM A312 TP 316 Welded Pipes retailer in Singapore, ASME SA312 Pipes supplier in sharjah, DIN 1.4436 Pipes trader in Mumbai, Stainless Steel 316Ti Pipes trader in Thailand, UNS S31600 Welded Pipes supplier in Mumbai, DIN 1.4436 Pipes distributor in Vietnam, Grade 316 Pipes stockiest in Thailand, Stainless Steel 316 Pipes supplier in Oman, Stainless Steel 316 Pipes dealer in Mumbai,316 Stainless Steel Seamless Pipes trader in Thailand.

Application Industries

Application Industries
  • Constructions
  • Industry & Factory
  • Power Generation Industries
  • Civil Engineering
  • Oil and Gas Industries
  • Petrochemical Industries
  • Engineering Industries

Our Global Presence

  • India India
  • Japan Japan
  • Russia Russia
  • United States United States
  • Saudi Arabia Saudi Arabia
  • Kuwait Kuwait
  • Singapore Singapore
  • Malaysia Malaysia
  • Uae UAE
  • Germany Germany
  • Italy Italy
  • China China
  • UK UK
  • Canada Canada
  • Iran Iran
  • Thailand Thailand
  • South Korea South Korea
  • Turkey Turkey
  • Morocco Morocco
  • Costa Rica Costa Rica
  • Kazakhstan Kazakhstan
  • Philippines Philippines
  • Egypt Egypt
  • Vietnam Vietnam
  • Oman Oman
  • Australia Australia
  • Qatar Qatar
  • Portugal Portugal
  • Mexico Mexico
  • Brazil Brazil
  • France France
  • South Africa South Africa
  • Jordan Jordan
  • Spain Spain
  • Hong Kong Hong Kong
  • Netherlands Netherlands
  • Indonesia Indonesia
  • Taiwan Taiwan
  • Nigeria Nigeria
  • Bangladesh Bangladesh
  • Iraq Iraq
  • Ukraine Ukraine
  • Poland Poland
  • Romania Romania
  • Cyprus Cyprus
  • Angola Angola
  • Colombia Colombia
  • Norway Norway
  • Chile Chile
  • Tobago Tobago
  • Greece Greece
  • Czechia Czechia
  • Belgium Belgium
  • Sri Lanka Sri Lanka
  • Myanmar Myanmar
  • Venezuela Venezuela

If you require any further information, Please do not hesitate to contact us.
